Definitive Technology LS-80 subterranean subwoofer: tall brown cylinder with a domed cap

Definitive Technology · Subterranean subwoofer

LS-80 Subwoofer

An 8-inch subwoofer that lives two-thirds underground. Only the low domed cap shows; the bass reaches every corner.

Ask for a price Full specs

Why it sounds this good

Why the bass goes underground

Bass is the hardest thing to do well outdoors: there are no walls to help it. The LS-80 solves it by hiding a proper subwoofer in the ground.

  1. LS-80 subwoofer cap rising from a mulched garden bed among native plants

    01

    Hidden in the bed

    About 390 mm of the enclosure goes below grade, leaving roughly 275 mm, mostly the low domed cap, above the soil. Surround it with mulch and plants and it reads as a garden light or a planter, not a speaker.

    2/3of it underground

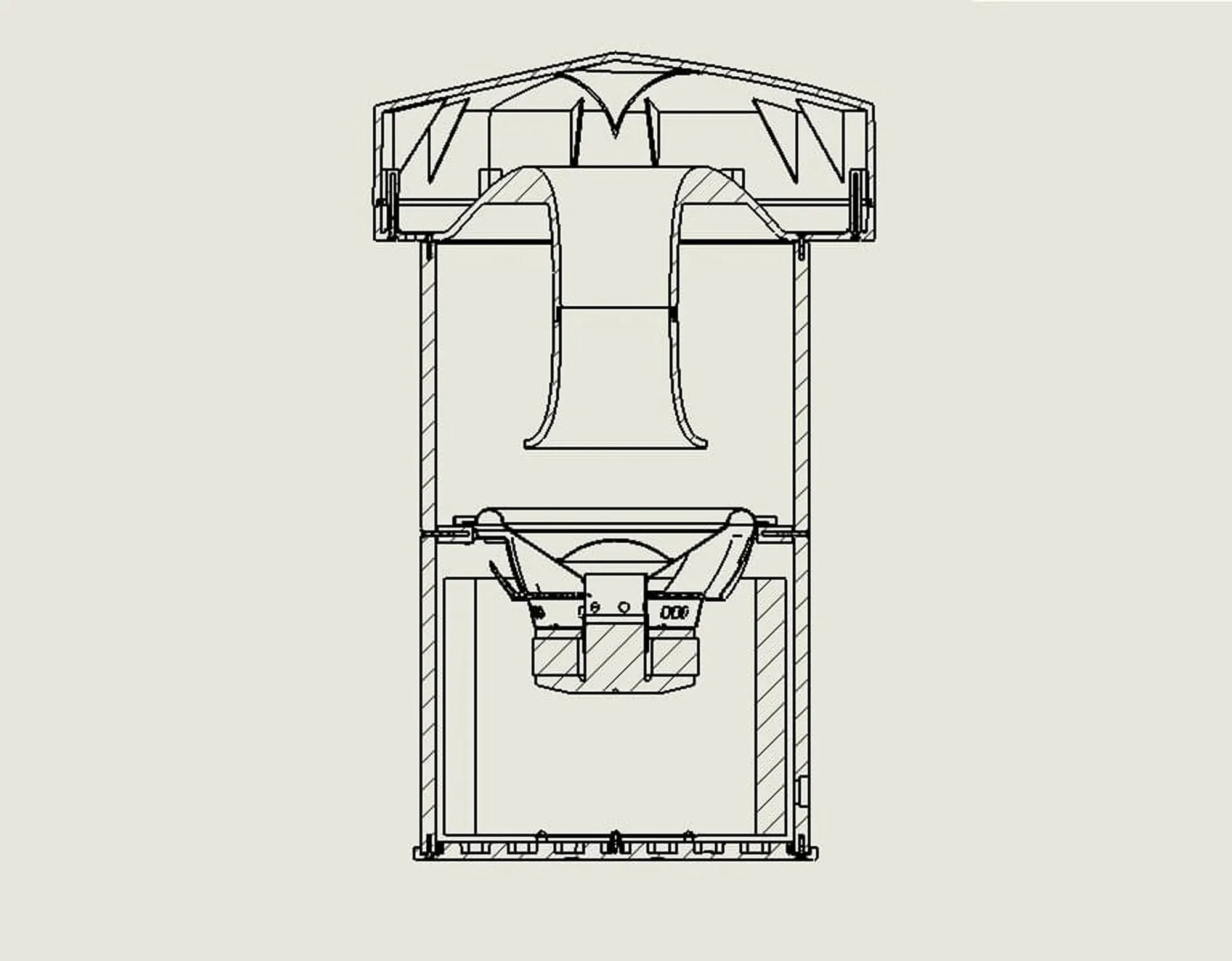

  2. Cutaway line drawing of the LS-80 showing the driver and port inside the enclosure

    02

    A real 8-inch long-throw driver

    Inside is an 8-inch long-throw, mineral-filled woofer with dual voice coils, loaded by a tuned port and a precision crossover. It digs down to 45 Hz, giving music the weight small outdoor speakers cannot.

    45 Hzextension (-3 dB)

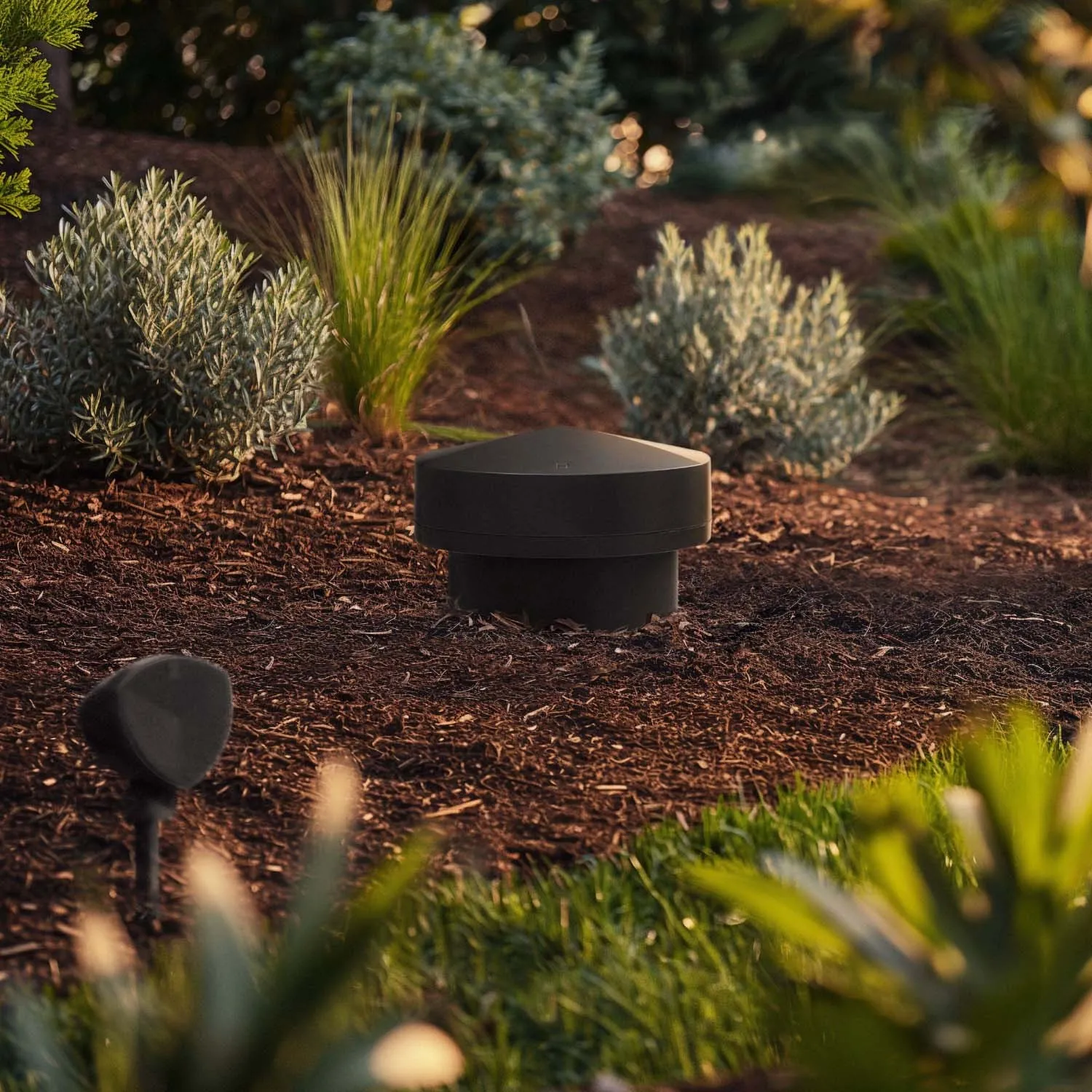

  3. LS-80 in a garden bed with a landscape speaker nearby at golden hour

    03

    Tough by design

    The ported enclosure is PolyStone, rugged and mineral-filled, and the whole subwoofer is rated IP54 against dust and splashing water. It is made to sit in soil through every season.

    IP54weather rating

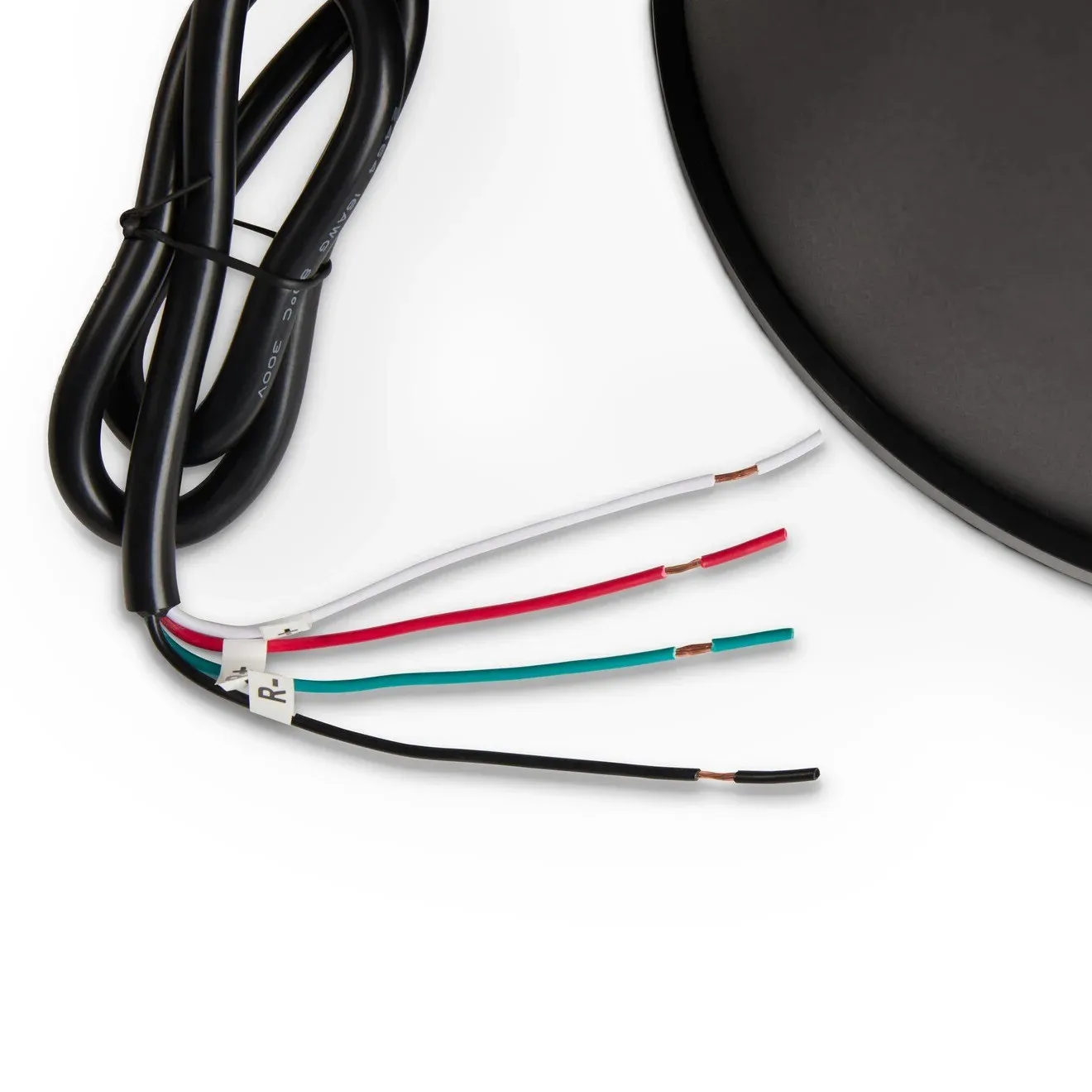

  4. The LS-80 dual cable pigtail wiring leads

    04

    Wires in beside the satellites

    Two voice coils, two jacketed pigtails. Each coil joins one amplifier channel alongside the satellites, which gives installers flexibility and lets a single stereo amp run both the sub and the speakers.

    8 Ωnominal impedance

Specifications

The numbers behind LS-80 Subwoofer

Type
8" subterranean landscape subwoofer
Driver
8" (203 mm) long-throw, mineral-filled, dual voice coil
Enclosure
Ported PolyStone
Frequency response
45 – 105 Hz (-3 dB), 36 – 125 Hz (-10 dB)
Sensitivity
84 dB (2.83 V / 1 m)
Nominal impedance
8 Ω
Recommended power
100 – 250 W

Specifications from Definitive Technology. Subject to change by the manufacturer.

665 mm overall 275 above 152 390 buried Ø 323 cap Ø 262 body GRADE
All dimensions in millimetres, from the manufacturer drawing.

LS-80 Subwoofer: questions we get asked

How deep does the hole need to be?

The LS-80 is 665 mm tall and is installed with about 390 mm below ground, leaving roughly 275 mm above.

Does it need a separate amplifier?

Not in an LS-6.1 style setup. Its two voice coils each join one channel of a stereo amplifier alongside the satellites. Never wire both subwoofer coils in parallel on the same channel: the impedance drops too low.

What does it pair with?

It is designed for the Dymension Outdoor LS-400 satellites. With the LS-80 in the system you can run up to eight LS-400s from one stereo amplifier.
